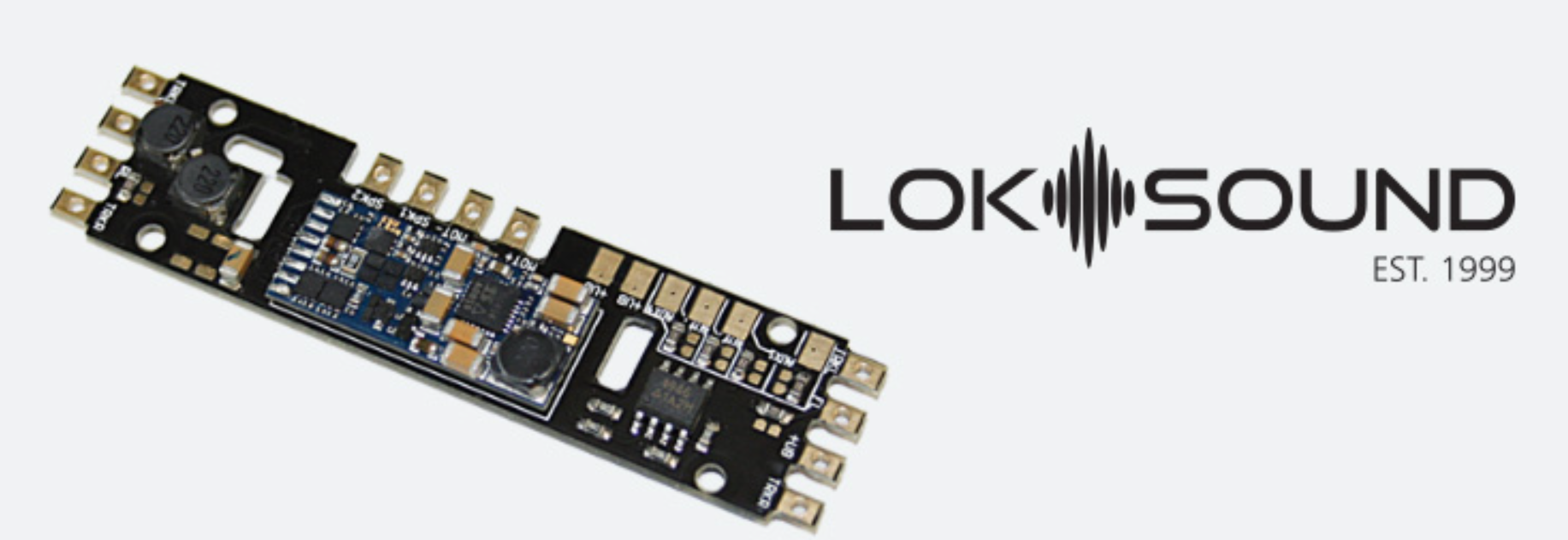

ESU 58821, LokSound 5 DCC Direct, Sound Decoder

With its unique design the LokSound 5 Direct DCC can easily replaceboards that provide poor motor control, low volume, or generally inferiorsound. Not only will the decoder work fine with most factory installedspeakers, but it will sound even better with our new 11x15mm“sugar cube” speaker and sound enclosure kits.

Modes

The LokSound 5 DCC is made for the North American and Australianmarkets. It is a pure DCC Decoder, which supports RailComPlus and canalso be used on DC layouts. With its size of 0.67x2.72inch/17x69mmThe V5 Direct DCC will fit in almost all of the popular North Americanand Australian HO manufacutrers locomotives.

In the DCC format, 14 to 128 speed steps are as natural as 2- and4-digit addresses and up to 32 functions. Thanks to RailComPlus®, thedecoders log on fully automatically to a suitable digital central unit.

It masters all DCC programming modes and, thanks to RailCom®, theCV values on the main track can be read out with suitable controlpanels. For panels that can only program the CVs from 1-255, thereare auxiliary registers.

Braking with DCC brake modules or DC voltage is also possible. Anautomatic ABC shuttle allows automatic commuting between two stations.

The LokSound 5 decoder can also be used on analog DC tracks.
