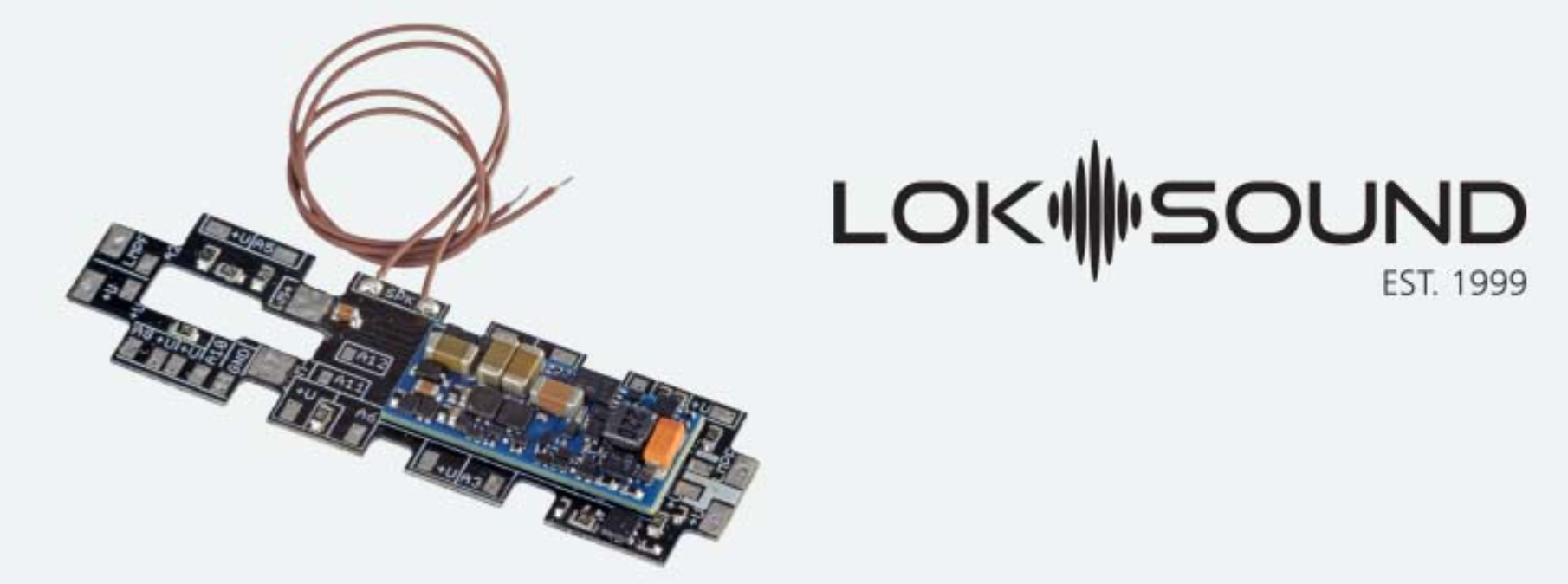

ESU 58941, LokSound 5 Micro DCC Direct Kato USA Widebody, Sound Decoder, N Scale

The LokSound 5 micro DCC Direct Kato USA Widebody has been specially developed for installation in wide body N gauge locomotives of the Kato USA brand: Most diesel locomotives of this manufacturer come with only a common DC lighting board. Finally, these models can also be easily retrofitted with a LokSound decoder.

The LokSound 5 micro DCC Direct Kato USA Widebody with its dimensions of 47.5mm x 14mm x 4.5mm is a pure DCC decoder and comes without a loudspeaker.

Modes

The LokSound 5 micro DCC Direct Kato USA Widebody is a “pure-bred” DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully to a suitable digital center. It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary regis- ters exist for control panels that can only program the CVs from 1-255.

The LokSound 5 micro DCC Direct Kato USA Widebody Decoder detects the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations.

The LokSound 5 micro DCC Direct Kato USA Widebody can be used on analog DC webs. The decoder switches “on-the-fly” fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
