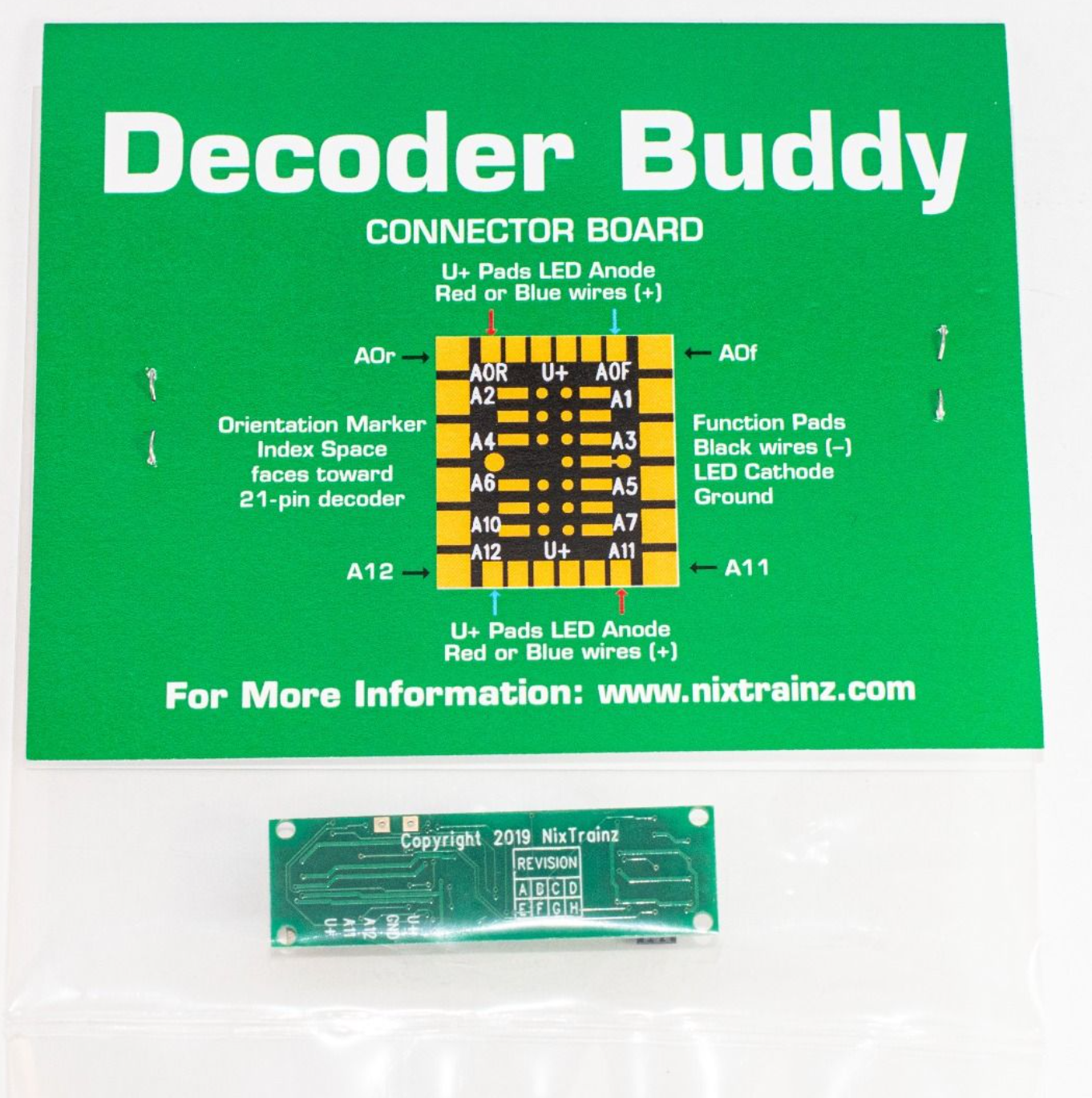

NixTrainz NTZ6, Decoder Buddy V5B, 12 Outputs With1K Resistors, Includes One Mother Board and One Connector Board

NixTrainz NTZ6, Decoder Buddy V5, 12 Outputs With1K Resistors, Includes One Mother Board and One Connector Board Decoder Buddy makes connecting your 21-Pin decoder to your HO Scale locomotive super-easy. Now a 21-pin-friendly board replaces the standard DCC 8-pin loco motherboard and easily allows you to take full advantage of all the functions and features of the latest, feature-rich decoders.

Benefits Include:

• Popular 21-pin decoders from TCS, SoundTraxx, ESU and Digitrax easily fit
• 10-pin socket and plug with wire-outs for all 21-pin decoder functions
• 10-pin plug fully removable for easy separation of loco shell and chassis
• On board resistors for LED lighting provided
• Connections for 12 lighting functions
• On-board soldering pads for connecting a stay alive capacitor of your choice
• Older 8-pin loco motherboard weaknesses solved with Decoder Buddy

Fits Most HO Scale Locomotives

Dimensions: 2.20" x 0.67" x 0.35" (56 mm x 17 mm x 0.9 mm)

Makes for easier DCC decoder installation in the some of the tightest locomotives.
